Cellofoam vibration damping products – your benefits
✔ Effective vibration damping
Reduction of mechanical vibrations for more operational safety
✔ Optimum decoupling of structure-borne noise
Prevention of noise transmission from machines, motors & appliances
✔ Longer service life of components
Protection of sensitive components against material fatigue & wear
✔ Tailor-made solutions
Customized production to meet your specific requirements
✔ Wide range of Applications
Use in household appliances, vehicle construction, mechanical engineering,
medical technology & more
✔ Easy installation
Self-adhesive options & precision-cut parts for flexible installation and use
✔ High-quality materials
Durable & high-performance PUR foams in various densities
Vibration isolation materials from Cellofoam – Effective vibration damping for maximum efficiency
In many technical applications, oscillation and vibration are a challenge that needs solving. These phenomena can cause noise, reduce the service life of machines, and affect operational efficiency. Cellofoam's high-quality vibration insulation products provide effective vibration damping and structure-borne noise decoupling, making a decisive contribution to noise reduction, process stability and machine longevity.
High-quality materials for maximum vibration damping
Our vibration-damping materials consist of high-quality mixed-cell PUR foams of various densities, which are designed to optimally match the respective load requirements. The materials are optimized for a wide variety of application areas – from coffee machines to industrial production lines – where they effectively minimize unwanted vibrations and noise.
Consult our experts!
Contact us at sales@cellofoam.de – we will help you choose the optimum vibration isolation for your application!
Areas of application for our vibration insulation products
✔ Mechanical & system engineering
Efficient damping in production systems & drives
✔ Vehicle construction & commercial vehicles
Vibration decoupling of engines & body components
✔ Domestic appliances
Noise & vibration reduction for washing machines, coffee machines & similar
✔ Medical technology
Vibration reduction for laboratory equipment & diagnostic systems
✔ Electronics & measuring equipment
Protection against interfering vibrations in sensitive applications
Main advantages
- Very good permanent elasticity even under high-stress conditions
- High resistance to mechanical strain
- Good insulation effect

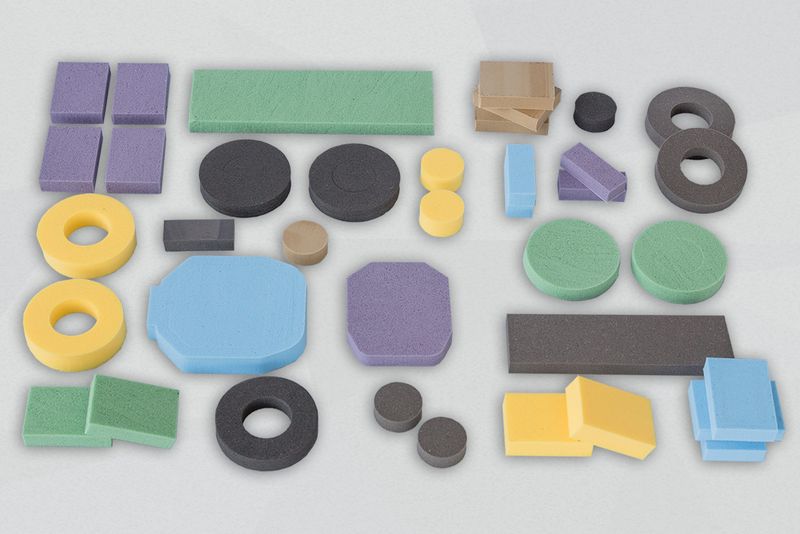

- Pre-cut parts ready for installation
Product overview

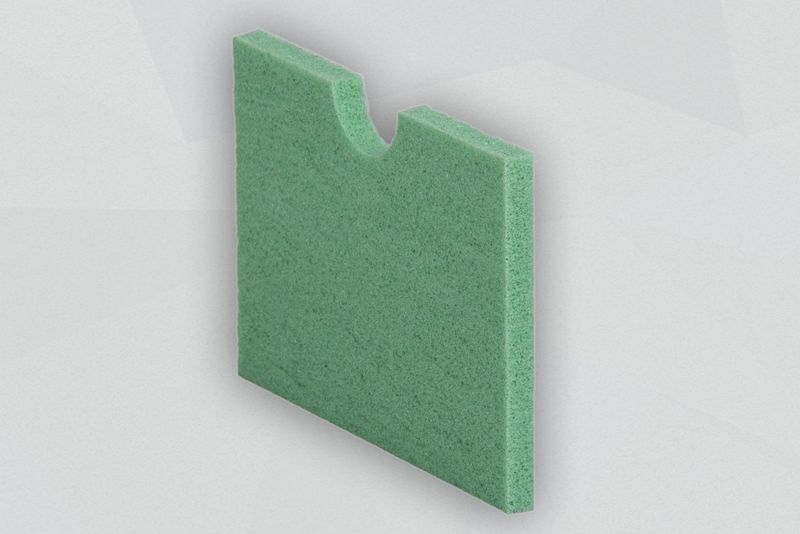

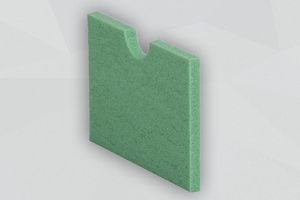

Regufoam vibration 150
✔ Maximum static load bearing capacity: 0,011 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,016 N/mm²
✔ Rare, short term peak loads: up to 0,500 N/mm²
>>Go to product data sheet

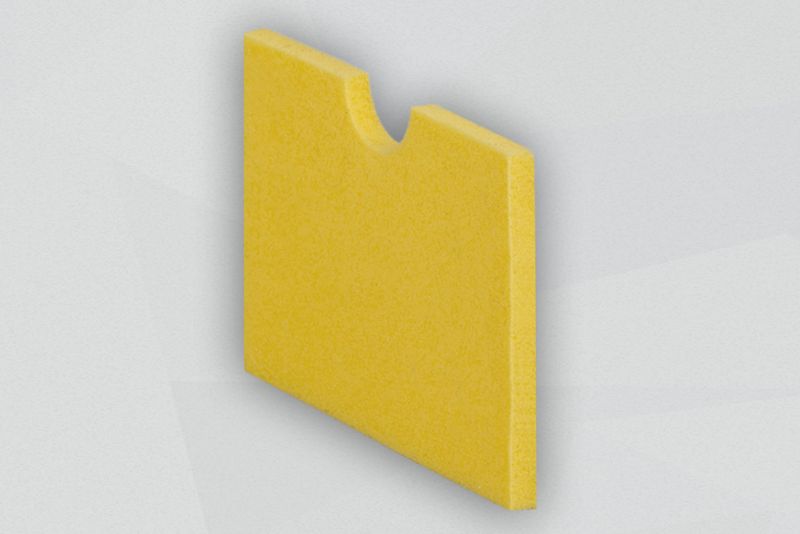

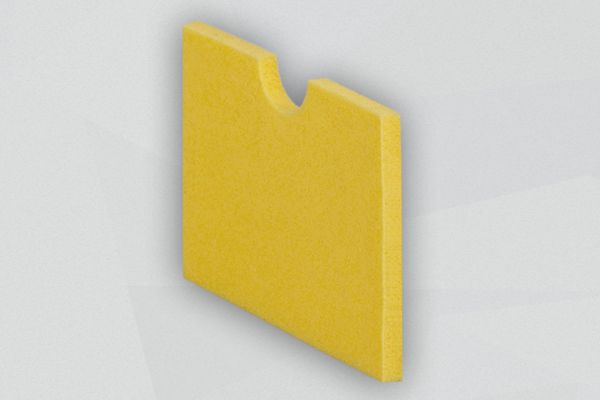

Regufoam vibration 190
✔ Maximum static load bearing capacity: 0,018 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,028 N/mm²
✔ Rare, short term peak loads: up to 0,800 N/mm²
>>Go to product data sheet

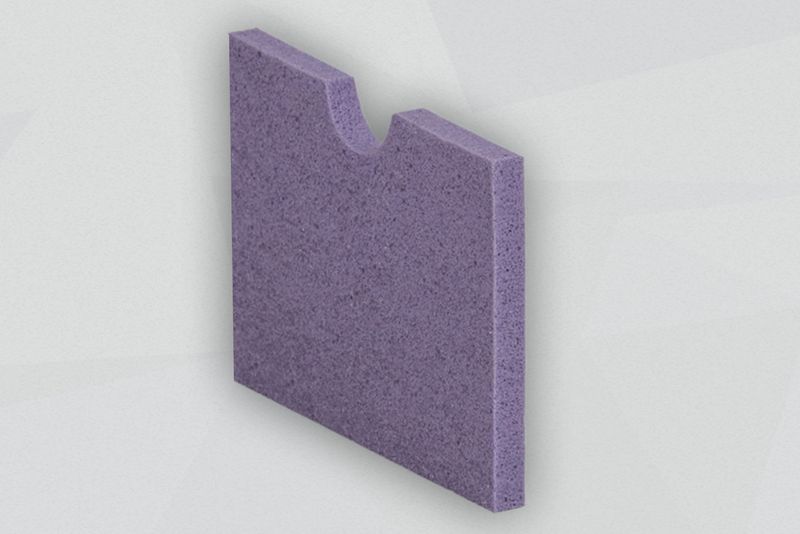

Regufoam vibration 220
✔ Maximum static load bearing capacity: 0,028 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,040 N/mm²
✔ Rare, short term peak loads: up to 0,900 N/mm²
>>Go to product data sheet

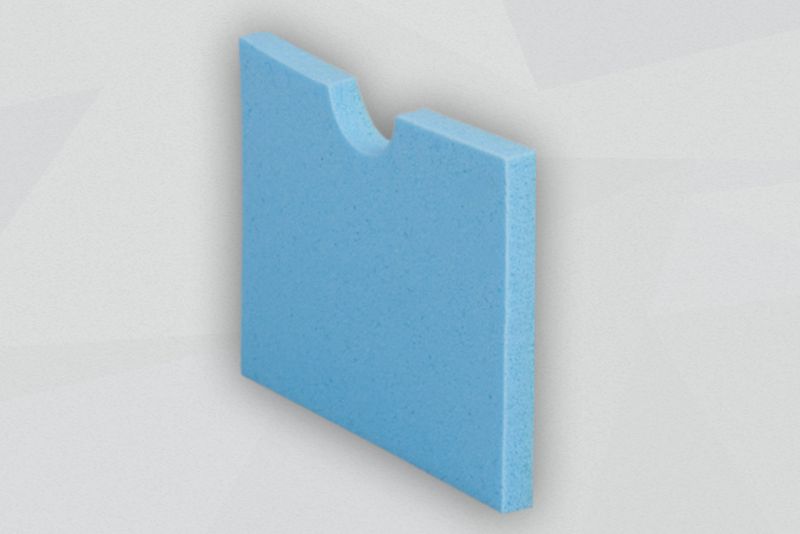

Regufoam vibration 270
✔ Maximum static load bearing capacity: 0,042 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,062 N/mm²
✔ Rare, short term peak loads: up to 1,200 N/mm²
>>Go to product data sheet

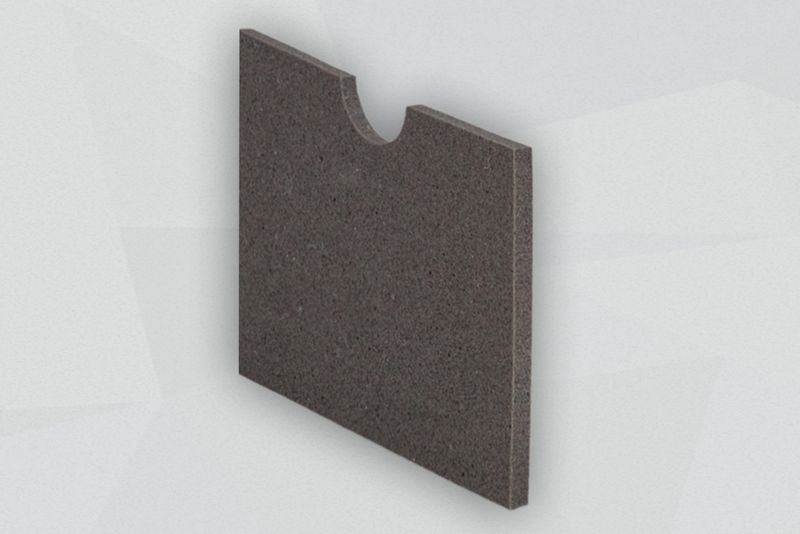

Regufoam vibration 300
✔ Maximum static load bearing capacity: 0,055 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,080 N/mm²
✔ Rare, short term peak loads: up to 2,000 N/mm²
>>Go to product data sheet

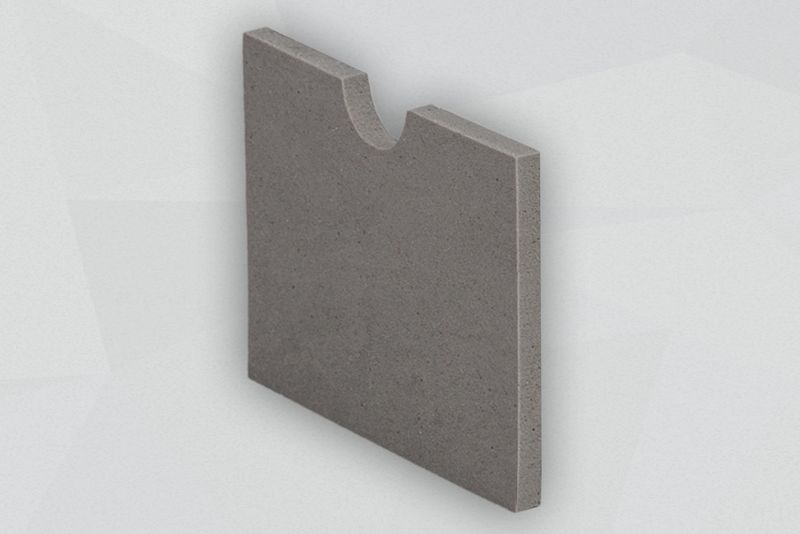

Regufoam vibration 400
✔ Maximum static load bearing capacity: 0,110 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,160 N/mm²
✔ Rare, short term peak loads: up to 3,000 N/mm²
>>Go to product data sheet

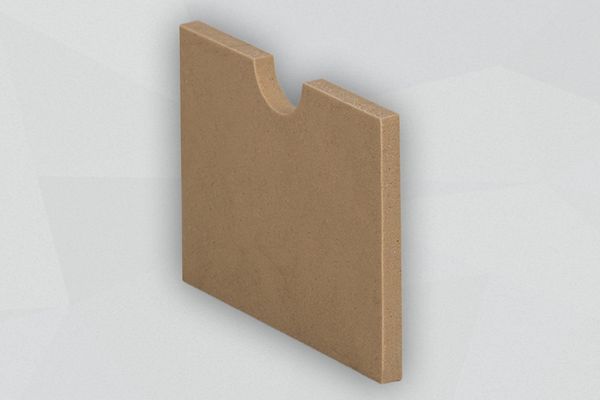

Regufoam vibration 510
✔ Maximum static load bearing capacity: 0,220 N/mm²
✔ Maximum dynamic load bearing capacity
for intermitted loadings: 0-0,320 N/mm²
✔ Rare, short term peak loads: up to 4,000 N/mm²
>>Go to product data sheet
FAQ
Here you will find answers to frequently asked questions about our vibration-damping
Vibration damping reduces the transmission of mechanical vibrations between machinery and its surroundings. This is achieved using special materials that absorb or decouple vibration energy, thereby preventing the transmission of structure-borne noise.
Vibration damping is used in a range of applications, including mechanical engineering, vehicle manufacturing, domestic appliances, medical technology, and heating, ventilation and air-conditioning systems. It serves to dampen vibrations and decouple structure-borne sound.
Cellofoam uses high-quality, open-cell PUR foams in various densities. These materials are specifically designed to withstand different loads and offer optimum damping properties.
In structure-borne sound decoupling, vibration-damping materials are inserted between two components. This absorbs vibrations and significantly reduces the transmission of noise and vibrations.
Choosing the right vibration damping depends on factors such as load range, frequency, installation conditions and area of application. Cellofoam helps companies select a bespoke solution for their specific application.
Customised solutions enable a precise fit, better performance and easy installation – for example, through self-adhesive variants or specific cut-to-size pieces.
